Connecting MotioneyeOS to Internet

1 Posts
1 Users
0 Reactions
4,439 Views
(@khukuma)
Member
Joined: 7 years ago
Posts: 1
Topic starter

 Hi! Dear all ! I have successfully made a camera surveillance system comprising of Raspberry Pi 3B+ and Raspberry Pi NoIR camera. It is working fine on my intranet /household computers connected to my router /access point. However, I want to connect it to world wide web.

I have tried my best to connect it to Internet through Port-forwarding through my TP-Link Wifi Router/Access Point but it ended in complete failure. I have tried to use port-forwarding softwares but they also didn't work.

MotioneyeOS Camera (Static IP) : 192.168.1.103

IP Address of TP Link Access Point /Router (Model: TD-W8961N): 192.168.1.1

Country /Region : Pakistan

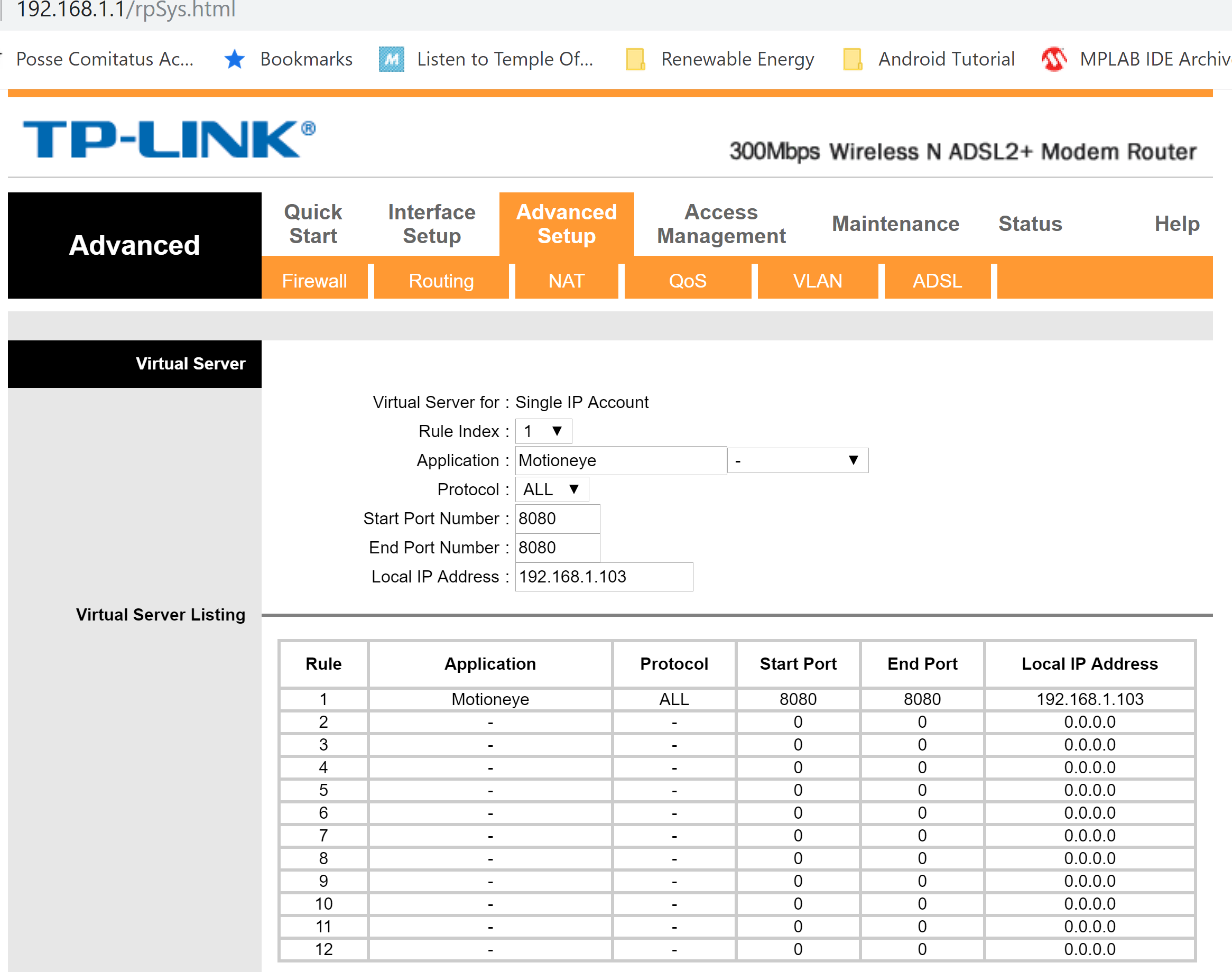

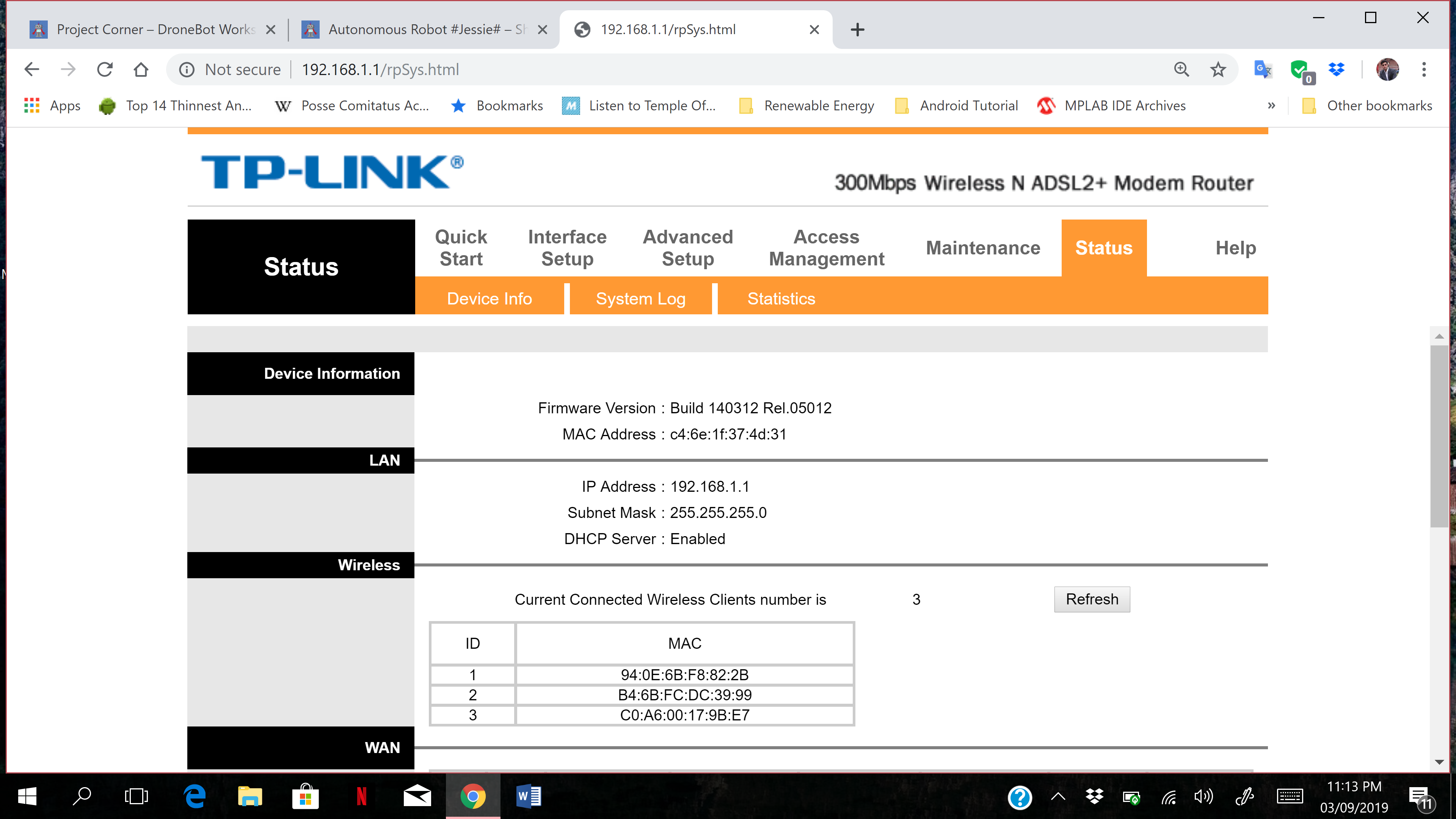

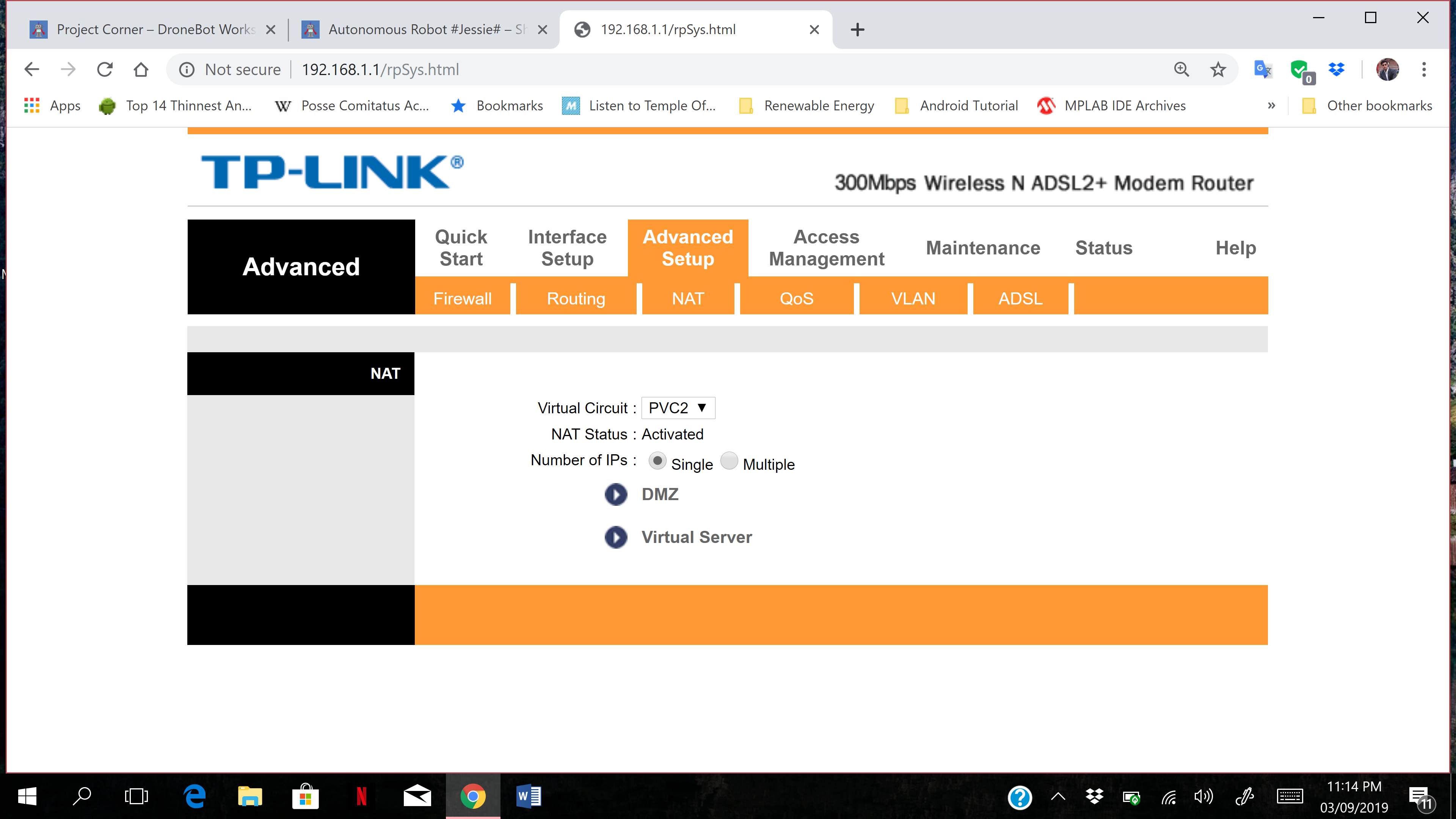

TP LINK Pictures of Port-forwarding :

1)

2)

3)

PLEASE TELL ME THE SOLUTION


This topic was modified 7 years ago 2 times by khukuma


Quote
